Multifunctional Nano-coating Technology

Sectors:
Objective:
Country:
Japan

MEDICAL NANOCOAT: Multifunctional Hygienic Coating Delivered by Nanotechnology





NascNano Technology co., ltd. has developed a revolutionary new technology called MEDICAL NANOCOAT that covers multiple functions such as antibacterial, antifouling and antistatic. This technology offers enhanced and sustainable antibacterial defenses and improved hygiene in various areas. It can be used for fabric products such as curtains, bedclothing and clothes, as well as various building materials, exteriors and interiors.

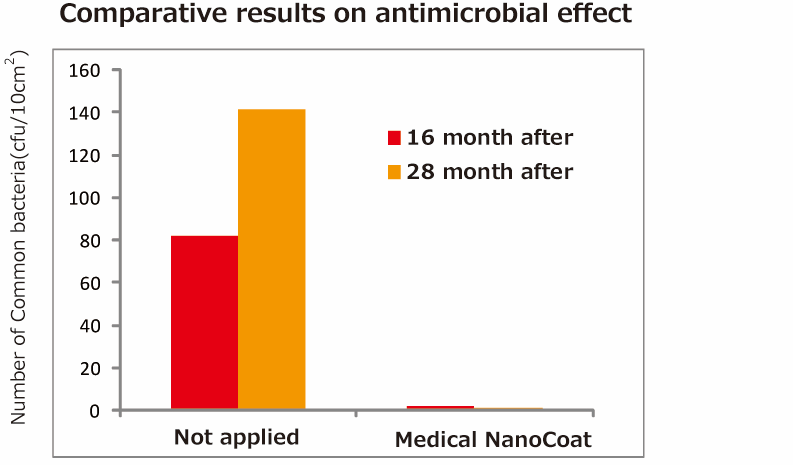

MEDICAL NANOCOAT has been confirmed by third-party organization to inactivate influenza viruses as well as viruses and bacteria such as Staphylococcus aureus, Escherichia coli and Legionella. One test conducted at a major international airport in Japan found that MEDICAL NANOCOAT-treated surfaces significantly reduced the presence of bacteria in comparison with non-treated surfaces. The same result was found even after 28 months from initial application.
MEDICAL NANOCOAT not only has antibacterial function, but also has excellent surface hydrophilicity, providing antifouling function making it difficult for dirt to adhere and easy to take off as well as dust repellent antistatic effect.
NascNano Technology will provide local companies technical guidance on how to apply MEDICAL NANOCOAT, production line introduction, and quality control, and will appropriately support business development using MEDICAL NANOCOAT.



Major Features and Advantages

I. Easy and effective
It can be applied directly onto anything from luggage racks to restrooms to information desks. It can either be sprayed or applied using a cloth to affected areas, such as door knobs. The nano-sized filler particles can seal micron-sized fissures that are undetectable to the naked eye, and a standard surface resistance meter can be used to make sure the surface has been adequately coated.






II. Preventive effect lasts for a long time without deterioration
By combining various single nano-sized (less than 10nm) metal materials, an efficient catalytic effect
can be demonstrated, and a continuous antibacterial                     Fig. 1 Application of MEDICAL NANOCOAT
effect can be obtained without deteriorating for a long time. In addition, antifouling and antistatic effects can improve sanitary environments easily and remarkably with its preventive effect.

Ⅲ. Multi-function
Not only antibacterial and antiviral, Medical Nanocoat can create a comfortable space where house dust and allergens are difficult to attach. Decompose harmful substances such as microorganisms, VOCs, and offensive odors to create a safe space. It is also effective in controlling mold growth.

Ⅳ. Wide range of application
Not only applying it to construction work, it can also be incorporated into production lines at the product manufacturing stage. As a result, it can develop a business that provides high-value-added products with excellent preventive hygiene in the market.



Technology Data

Possible applications

・ Multifunctional Nano-coating Manufacturing and develop of processed films and fabrics.
・ Coating or processing clothes, bed clothing and curtains with MEDICAL NANOCOAT at their manufacturing stage.
・ Coating or processing building materials, interior, exterior and furniture with MEDICAL NANOCOAT at their manufacturing stage.
・ Coating inside of buildings as a defense against transmission of communicable disease in public facilities.
It can be applied to places where unspecified number of people gather, such as mass transit system including airports and train stations as well as hospitals, schools, and kindergartens.

◆Examples of coating at public facilities




Fig. 2 MEDICOAT featured in AVIATION SECURITY INTERNATIONAL. NascNanoTechnology personnel shown applying MEDICOAT to airport luggage carts.




Fig.3 Application of MEDICOAT to information counter at KIX.




Fig. 4 NascNano Technology personnel applying MEDICOAT for prevention of hospital acquired illnesses in emergency hospital.




 Fig. 5 Restrooms are well-known environments that enable the spread of communicable disease and therefore serve as an excellent strategic platform to target with MEDICAL NANOCOAT.



◆◆

How to apply MEDICAL NANOCOAT

Apply MEDICAL NANOCOAT to door knob:

 1. MEDICOAT coating solutions

         MEDICAL NANOCOAT consists of two coating solutions.






2. Application step 1

        Apply coating solution No. 1 to a clean cloth.






3. Application step 2

        Apply reagent No. 1 to surface of interest by
        “wiping on” coating solution.






4. Prepare spray gun for application of coating
         solution No. 2

         Pour solution No. 2 into spray gun canister.






5. Application of solution No. 2

       Spray solution No. 2 onto target surface and let dry
       for 30 seconds.






6. Quality assurance

        For quality assurance, use an (electrostatic) surface
        resistance meter to ensure that the desired target
        surface has been properly coated.






 7. (Optional) Bacterial quantification

        Use the bacterial quantification kit to examine bacterial
        load on coated/uncoated surfaces.









※When adding or coating MEDICAL NANOCOAT to a product while manufacturing,  we have technologies tailoer to each product line.



Competitive advantage

While photocatalytic coatings exist in today’s market as a technology similar to MEDICAL NANOCOAT, NascNano Technology’s nano-coating offers the following competitive advantages:

・Photocatalytic seal by filling micron-sized fissures on surfaces
In order to maximize the utility of MEDICAL NANOCOAT’s physical and substance properties, our photocatalytic particles are specifically designed to a uniform size pattern of 1-10 nm. These nano-sized filler particles effectively seal micron-sized fissures on surfaces that are undetectable to the naked eye.

・Antibacterial protection under minimum/no light conditions
MEDICAL NANOCOAT is effective under both diurnal and nocturnal conditions. This is achieved not only through photocatalytic but also a unique blend (for diurnal and nocturnal conditions) combined with nanometal particles such as silver, platinum, selenium, and provides antibacterial protection under minimal / no light conditions.

・Detectable nano-coating with a standard (electrostatic) surface resistance meter
Nano-coating is invisible and cannot be observed without the aid of a microscope. Therefore, the task of confirming where a nano-coating material has been successfully applied is exceedingly difficult. In order to enhance the capability of clients to check for where the nano-coating has been applied, MEDICAL NANOCOAT has been specifically engineered to be detectable with a standard (electrostatic) surface resistance meter.



Performance

Effectively inactivates the influenza virus in 15 seconds (third party testing carried out by Shokukanken Laboratory).

Neutralizes Staphylococcus aureus, E. Coli, Bacillus subtilis (third party testing carried out by the Department of Environmental Sciences, University of Shizuoka, Japan).

After coating various surfaces in a major international airport in Japan, the MEDICAL NANOCOAT treated surfaces had a significantly reduced bacterial load in comparison with non-treated surfaces even after 28 months from initial application (third party testing carried out by the Department of Environmental Sciences, University of Shizuoka, Japan).






Technical maturity / Past record of introduction

Past record of introduction within Japan:

・Tokyo International Airport (2010, 2011, 2014)
・Kansai International Airport (2010,2011,2012)
・Ichihara Municipal emergency medical treatment center (2011)
・Ichihara City Hall (2011)
・Nikko Hotel Kansai International Airport (2011)
・Osaka Municipal subway transit system (2013)
・Yotsuba nursing care facility (2016)
・Tenjuen nursing care facility (2016)
・Amano Jitsugyo food processing plant (2014)
・Yotsuba daycare service center



Information on patent related to this technology

International patents pending.
PCT/JP2016/000098



Contact person

Ms. Ihoko TADA
 E-mail: medi@medi-coat.com
 Corporate website: http://medi-coat.com
